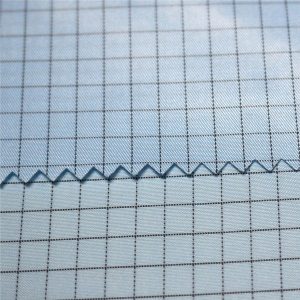

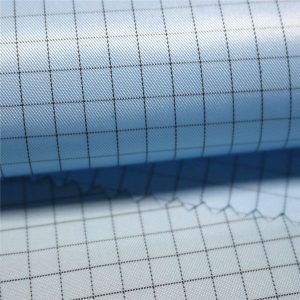

5mm stripe twill polyester antistatic woven fabric for antistatic garments

Quick Details


Material: 100% Polyester, Polyester + Carbon conductive yarn
Supply Type: In-Stock Items
Style: Stripe
Technics: Woven
Feature: Anti-Static, lint free
Use: Bag, Dress, Home Textile, Industry, Shoes, Sofa, Suit, Toy, Workwear, uniform and cleanroom garments
Certification: ROHS, SGS
Yarn Count: 13
Weight: 110gsm, 110gsm
Density: 5mm
Model Number: W00158
Type: Polyester woven fabric
Surface Resistance: 10^6-10^7 ohms
Condutive Yarn's Pattern: Stripe / Gird
Constrution: Twill
Decay Time: ±0.01 sec
Certificate: SGS, Rohs
Permeability to Air: 15cm3/cn2/sec

Technical Parameters


Model5mm stripe twill polyester antistatic woven fabric for antistatic garments
MaterialPolyester + Carbon conductive yarn
Surface Resistance10^6-10^7 ohms
Weight110gsm
Conductive Yarn5mm stripe, 5mm grid, 2.5mm grid
ConstructionTwill
Decay Time±0.01 sec
TechnicalWoven fabric
Permeability to Air15cm3/cn2/sec
UseWorkwear, uniform and cleanroom garments
FeatureLint free polyester fabric with conductive yarn



Product Information


1. How does antistatic polyester fabric work?

Our ESD Fabrics are made of lint-free polyester filament, which provides good static dissipation and superior air permeability and particle filtration.

This helps prevent contamination and keeps the wearer comfortable.

These Fabrics have a conductive yarn that provides low surface resistivity of between 106Ω/square and 107Ω/square and quick static dissipation for effective control of ESD.

2. Why the woven polyester fabric have ESD effect?

Cotton, polyester/cotton and polyester/rayon mix fibers are able to dissipate static electricity in high humidity environments (RH% up to 60%)
This is not the case in low humidity situations (RH% low to 50%), which might cause problems such as dust explosion
L8 woven antistatic fabric is a specially designed for ESD garments
It still shows very good ESD performance in low humidity environments
Our antistatic fabric ensures excellent electrostatic dissipation performance due to the conductive yarn woven into the base fabric
Good air permeability and a soft hand texture gives it a better wearer comfort, according to its special weave design and composition, after several washes, the fabric won’t crinkle and the conductive yarn in the fabric won’t be easily damaged or broken.
